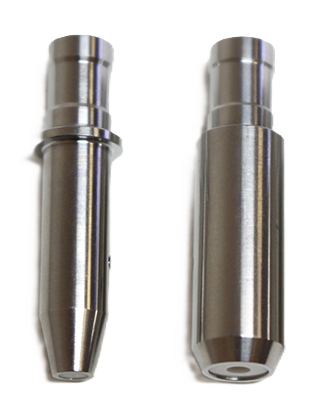

A pair of ceramic EDM guides.

Standard Guides

Guides with inner diameters from .20 mm to 6.0 mm are available as standard guides. These guides are robust, with a thick body and blunt tip, and have a longer lifespan than micro guides.

Micro Guides

Guides with inner diameters from .10 mm to .29 mm are available as micro guides. The slim profile and tapered tip allow for more accurate drilling.

L-Type Guides

These guides have a very thin body, and are perfect for getting into tight spaces. L-Type guides with conventional ceramic guiding surfaces are available in inner diameters from .30 mm to 1.0 mm. If you require a guide with different dimensional characteristics, please refer to our custom guides page.

Drawing showing the dimensional characteristics of an L-Type guide with ceramic guide surface.

Ordering Custom EDM Guides

If a guide in the desired size cannot be found in the parts list below, do not hesitate to contact us. Custom guides can be built to your specifications. Please visit our guide customization page for more information. Guide specifications can be found here.

Product Code and Description

Three guides of standard sizes with electrodes running through them.

Please note that the following parts list is not representative of our entire guide selection. This list is meant to be used as much for reference as for actual purchasing, and represents a range, rather than a comprehensive list, of the products we offer. If the dimensions of a desired guide are not found on this list, but lie between listed dimensions, we are capable of manufacturing it.

Part Number
Body Diameter
Inner Diameter
Shank Diameter

HP-010CG – Micro
6.0mm / .236″
0.10mm / .004″
6.0mm / .236″

HP-011CG – Micro
6.0mm / .236″
0.11mm / .004″
6.0mm / .236″

HP-012CG – Micro
6.0mm / .236″
0.12mm / .005″
6.0mm / .236″

HP-013CG – Micro
