AgieDrill/Agie-Charmilles EDM Guides and Sets

  • Guides for Agie-Charmilles 054-0014 Hole Drilling Machines

    Guides for Agie-Charmilles/AgieDrill 054-0014 EDM drilling machines come in a set, including a guide, collet, retaining clip, compression sleeve, and rubber grommets. The internal diameter is customizable, with a guiding surface made out of synthetic ruby. They may also be ordered with a standard ceramic guiding surface. Collets may be ordered in brass or stainless steel.

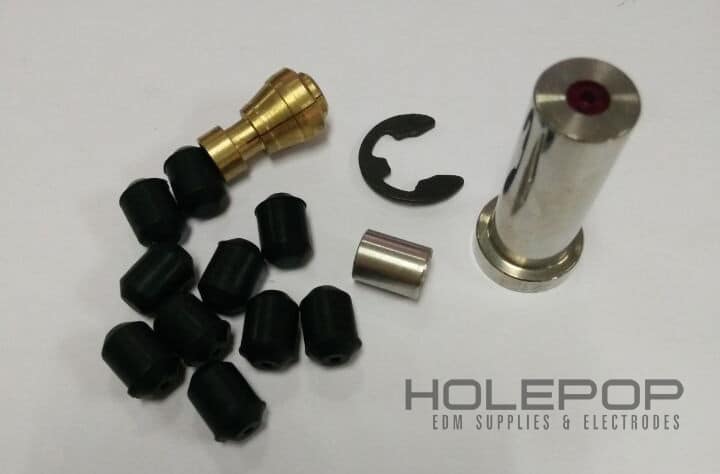

  • An Agie-Charmilles/AgieDrill 054-0014 Ruby Guide Set including a guide, collet, retaining clip, compression sleeve, and rubber grommets.

Product Infomation

  • Inner Diameter Body Diameter Head Diameter OAL
    0.10mm / .004 12mm 16mm 31mm
    0.11mm / .004 12mm 16mm 31mm
    0.12mm / .005 12mm 16mm 31mm
    0.13mm / .005 12mm 16mm 31mm
    0.14mm / .006 12mm 16mm 31mm
    0.15mm / .006 12mm 16mm 31mm
    0.16mm / .006 12mm 16mm 31mm
    0.17mm / .007 12mm 16mm 31mm
    0.18mm / .007 12mm 16mm 31mm
    0.19mm / .007 12mm 16mm 31mm
    0.20mm / .008 12mm 16mm 31mm
    0.21mm / .008 12mm 16mm 31mm
    0.22mm / .009 12mm 16mm 31mm
    0.23mm / .009 12mm 16mm 31mm
    0.24mm / .009 12mm 16mm 31mm
    0.25mm / .010 12mm 16mm 31mm
    0.26mm / .010 12mm 16mm 31mm
    0.27mm / .011 12mm 16mm 31mm
    0.28mm / .011 12mm 16mm 31mm
    0.29mm / .011 12mm 16mm 31mm
    0.30mm / .012 12mm 16mm 31mm
    0.31mmmm / .012 12mm 16mm 31mm
    0.32mm / .013 12mm 16mm 31mm
    0.33mm / .013 12mm 16mm 31mm
    0.34mm / .013 12mm 16mm 31mm
    0.35mm / .014 12mm 16mm 31mm
    0.36mm / .014 12mm 16mm 31mm
    0.37mm / .015 12mm 16mm 31mm
    0.38mm / .015 12mm 16mm 31mm
    0.39mm / .015 12mm 16mm 31mm
    0.40mm / .016 12mm 16mm 31mm
    0.41mm / .016 12mm 16mm 31mm
    0.42mm / .017 12mm 16mm 31mm
    0.43mm / .017 12mm 16mm 31mm
    0.44mm / .017 12mm 16mm 31mm
    0.45mm / .018 12mm 16mm 31mm
    0.46mm / .018 12mm 16mm 31mm
    0.47mm / .019 12mm 16mm 31mm
    0.48mm / .019 12mm 16mm 31mm
    0.49mm / .019 12mm 16mm 31mm
    0.50mm / .020 12mm 16mm 31mm
    0.51mm / .020 12mm 16mm 31mm
    0.52mm / .020 12mm 16mm 31mm
    0.53mm / .021 12mm 16mm 31mm
    0.54mm / .021 12mm 16mm 31mm
    0.55mm / .022 12mm 16mm 31mm
    0.56mm / .022 12mm 16mm 31mm
    0.57mm / .022 12mm 16mm 31mm
    0.58mm / .023 12mm 16mm 31mm
    0.59mm / .023 12mm 16mm 31mm
    0.60mm / .024 12mm 16mm 31mm
    0.61mm / .024 12mm 16mm 31mm
    0.62mm / .024 12mm 16mm 31mm
    0.63mm / .025 12mm 16mm 31mm
    0.64mm / .025 12mm 16mm 31mm
    0.65mm / .026 12mm 16mm 31mm
    0.66mm / .026 12mm 16mm 31mm
    0.67mm / .026 12mm 16mm 31mm
    0.68mm / .027 12mm 16mm 31mm
    0.69mm / .027 12mm 16mm 31mm
    0.70mm / .028 12mm 16mm 31mm
    0.71mm / .028 12mm 16mm 31mm
    0.72mm / .028 12mm 16mm 31mm
    0.73mm / .029 12mm 16mm 31mm
    0.74mm / .029 12mm 16mm 31mm
    0.75mm / .030 12mm 16mm 31mm
    0.76mm / .030 12mm 16mm 31mm
    0.77mm / .030 12mm 16mm 31mm
    0.78mm / .031mm 12mm 16mm 31mm
    0.79mm / .031mm 12mm 16mm 31mm
    0.80mm / .031mm 12mm 16mm 31mm
    0.81mm / .032 12mm 16mm 31mm
    0.82mm / .032 12mm 16mm 31mm
    0.83mm / .033 12mm 16mm 31mm
    0.84mm / .033 12mm 16mm 31mm
    0.85mm / .033 12mm 16mm 31mm
    0.86mm / .034 12mm 16mm 31mm
    0.87mm / .034 12mm 16mm 31mm
    0.88mm / .035 12mm 16mm 31mm
    0.89mm / .035 12mm 16mm 31mm
    0.90mm / .035 12mm 16mm 31mm
    0.91mm / .036 12mm 16mm 31mm
    0.92mm / .036 12mm 16mm 31mm
    0.93mm / .037 12mm 16mm 31mm
    0.94mm / .037 12mm 16mm 31mm
    0.95mm / .037 12mm 16mm 31mm
    0.96mm / .038 12mm 16mm 31mm
    0.97mm / .038 12mm 16mm 31mm
    0.98mm / .039 12mm 16mm 31mm
    0.99mm / .039 12mm 16mm 31mm
    1.00mm / .039 12mm 16mm 31mm
    1.01mm / .040 12mm 16mm 31mm
    1.02mm / .040 12mm 16mm 31mm
    1.03mm / .041 12mm 16mm 31mm
    1.04mm / .041 12mm 16mm 31mm
    1.05mm / .041 12mm 16mm 31mm
    1.06mm / .042 12mm 16mm 31mm
    1.07mm / .042 12mm 16mm 31mm
    1.08mm / .043 12mm 16mm 31mm
    1.09mm / .043 12mm 16mm 31mm
    1.10mm / .043 12mm 16mm 31mm
    1.11mm / .044 12mm 16mm 31mm
    1.12mm / .044 12mm 16mm 31mm
    1.13mm / .044 12mm 16mm 31mm
    1.14mm / .045 12mm 16mm 31mm
    1.15mm / .045 12mm 16mm 31mm
    1.16mm / .046 12mm 16mm 31mm
    1.17mm / .046 12mm 16mm 31mm
    1.18mm / .046 12mm 16mm 31mm
    1.19mm / .047 12mm 16mm 31mm
    1.20mm / .047 12mm 16mm 31mm
    1.21mm / .048 12mm 16mm 31mm
    1.22mm / .048 12mm 16mm 31mm
    1.23mm / .048 12mm 16mm 31mm
    1.24mm / .049 12mm 16mm 31mm
    1.25mm / .049 12mm 16mm 31mm
    1.26mm / .050 12mm 16mm 31mm
    1.27mm / .050 12mm 16mm 31mm
    1.28mm / .050 12mm 16mm 31mm
    1.29mm / .051 12mm 16mm 31mm
    1.30mm / .051 12mm 16mm 31mm
    1.31mmmm / .052 12mm 16mm 31mm
    1.32mm / .052 12mm 16mm 31mm
    1.33mm / .052 12mm 16mm 31mm
    1.34mm / .053 12mm 16mm 31mm
    1.35mm / .053 12mm 16mm 31mm
    1.36mm / .054 12mm 16mm 31mm
    1.37mm / .054 12mm 16mm 31mm
    1.38mm / .054 12mm 16mm 31mm
    1.39mm / .055 12mm 16mm 31mm
    1.40mm / .055 12mm 16mm 31mm
    1.41mm / .056 12mm 16mm 31mm
    1.42mm / .056 12mm 16mm 31mm
    1.43mm / .056 12mm 16mm 31mm
    1.44mm / .057 12mm 16mm 31mm
    1.45mm / .057 12mm 16mm 31mm
    1.46mm / .057 12mm 16mm 31mm
    1.47mm / .058 12mm 16mm 31mm
    1.48mm / .058 12mm 16mm 31mm
    1.49mm / .059 12mm 16mm 31mm
    1.50mm / .059 12mm 16mm 31mm
    1.51mm / .059 12mm 16mm 31mm
    1.52mm / .060 12mm 16mm 31mm
    1.53mm / .060 12mm 16mm 31mm
    1.54mm / .061 12mm 16mm 31mm
    1.55mm / .061 12mm 16mm 31mm
    1.56mm / .061 12mm 16mm 31mm
    1.57mm / .062 12mm 16mm 31mm
    1.58mm / .062 12mm 16mm 31mm
    1.59mm / .063 12mm 16mm 31mm
    1.60mm / .063 12mm 16mm 31mm
    1.61mm / .063 12mm 16mm 31mm
    1.62mm / .064 12mm 16mm 31mm
    1.63mm / .064 12mm 16mm 31mm
    1.64mm / .065 12mm 16mm 31mm
    1.65mm / .065 12mm 16mm 31mm
    1.66mm / .065 12mm 16mm 31mm
    1.67mm / .066 12mm 16mm 31mm
    1.68mm / .066 12mm 16mm 31mm
    1.69mm / .067 12mm 16mm 31mm
    1.70mm / .067 12mm 16mm 31mm
    1.71mm / .067 12mm 16mm 31mm
    1.72mm / .068 12mm 16mm 31mm
    1.73mm / .068 12mm 16mm 31mm
    1.74mm / .069 12mm 16mm 31mm
    1.75mm / .069 12mm 16mm 31mm
    1.76mm / .069 12mm 16mm 31mm
    1.77mm / .070 12mm 16mm 31mm
    1.78mm / .070 12mm 16mm 31mm
    1.79mm / .070 12mm 16mm 31mm
    1.80mm / .071 12mm 16mm 31mm
    1.81mm / .071 12mm 16mm 31mm
    1.82mm / .072 12mm 16mm 31mm
    1.83mm / .072 12mm 16mm 31mm
    1.84mm / .072 12mm 16mm 31mm
    1.85mm / .073 12mm 16mm 31mm
    1.86mm / .073 12mm 16mm 31mm
    1.87mm / .074 12mm 16mm 31mm
    1.88mm / .074 12mm 16mm 31mm
    1.89mm / .074 12mm 16mm 31mm
    1.90mm / .075 12mm 16mm 31mm
    1.91mm / .075 12mm 16mm 31mm
    1.92mm / .076 12mm 16mm 31mm
    1.93mm / .076 12mm 16mm 31mm
    1.94mm / .076 12mm 16mm 31mm
    1.95mm / .077 12mm 16mm 31mm
    1.96mm / .077 12mm 16mm 31mm
    1.97mm / .078 12mm 16mm 31mm
    1.98mm / .078 12mm 16mm 31mm
    1.99mm / .078 12mm 16mm 31mm
    2.00mm / .079 12mm 16mm 31mm
    2.10mm / .083 12mm 16mm 31mm
    2.20mm / .087 12mm 16mm 31mm
    2.30mm / .091 12mm 16mm 31mm
    2.40mm / .094 12mm 16mm 31mm
    2.50mm / .098 12mm 16mm 31mm
    2.60mm / .102 12mm 16mm 31mm
    2.70mm / .106 12mm 16mm 31mm
    2.80mm / .110 12mm 16mm 31mm
    2.90mm / .114 12mm 16mm 31mm
    3.00mm / .118 12mm 16mm 31mm
